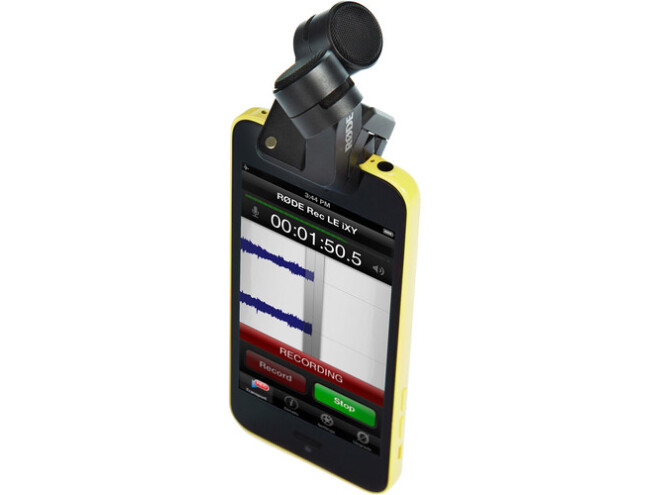

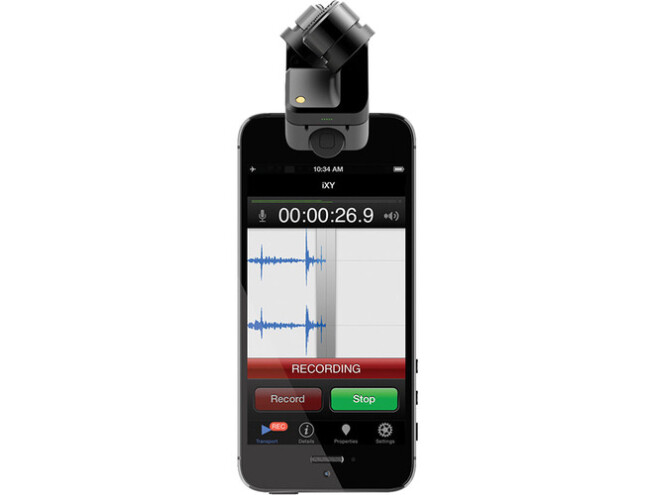

The lightning connector version of the RØDE iXY Stereo Microphone is designed for portable audio recording applications using a Lightning connector iOS device (e.g. iPhone 5/s/c). It can be used for recording music, interviews, sound design, film-making, and more. The device features a metal housing to help reduce electromagnetic interference around two condenser microphone elements positioned in an XY configuration and an integrated iClamp for securing the microphone to your mobile device. The unit can records at up to 24-bit 96 kHz resolution using the RØDE Rec App, available from the Apple iTunes App store. A 72 Hz high pass filter can be engaged in software to reduce unwanted low frequency noise.
XY Pair Microphone Pattern
Provides stereo audio pickup pattern with realistic spatial imaging
Metal Housing
Protects device physically and helps reduce electromagnetic interference
Software 72 Hz High Pass Filter
Reduces unwanted low frequency noise
iClamp
Secures iXY to mobile device
Foam Windshield
Helps reduce wind noise from being picked up by the microphones
Zippered Carrying Case
Protects condenser elements from dust when not in use
| Connector | Apple Lightning connector |
| Acoustic Principle | Pressure gradient |
| Active Electronics | JFET impedance converter 24-bit 96 kHz A/D converter |
| Capsule | 2x 0.50" (1.3 cm) condenser |
| Polar Pattern | Paired cardioid capsules in XY pattern |
| Address Type | End |
| Frequency Range | 20 to 20,000 Hz (selected HPF at 0) |
| High Pass Filter | 72 Hz in software |
| Output Impedance | 0 Ohms |
| Maximum SPL | 122 dB SPL (at 1,000 Hz and 1% THD into 1 kOhms load) |
| Sensitivity | -34 dB re 1V/Pa (19.7 mV at 94 dB SPL) ± 2 dB at 1,000 Hz |
| Equivalent Input Noise | 17 dBA (A-weighted) |
| Signal to Noise Ratio | 76 dBA SPL (as per IEC651) |
| Power Requirements | Powered from device |
